4 Inch Stainless Steel Fountain Pumps

HUALUO 4 inch stainless steel fountain pumps are made of stainless steel for 4-inch or larger boreholes. They meet NEMA mounting standards and provide hydraulic efficiency and stable water supply under continuous or high-frequency cycling.

Model-by-Model Breakdown

ModelMax Flow (m³/h)Max Head (m)Power/Stage (P2​)Best Efficiency Point (BEP)

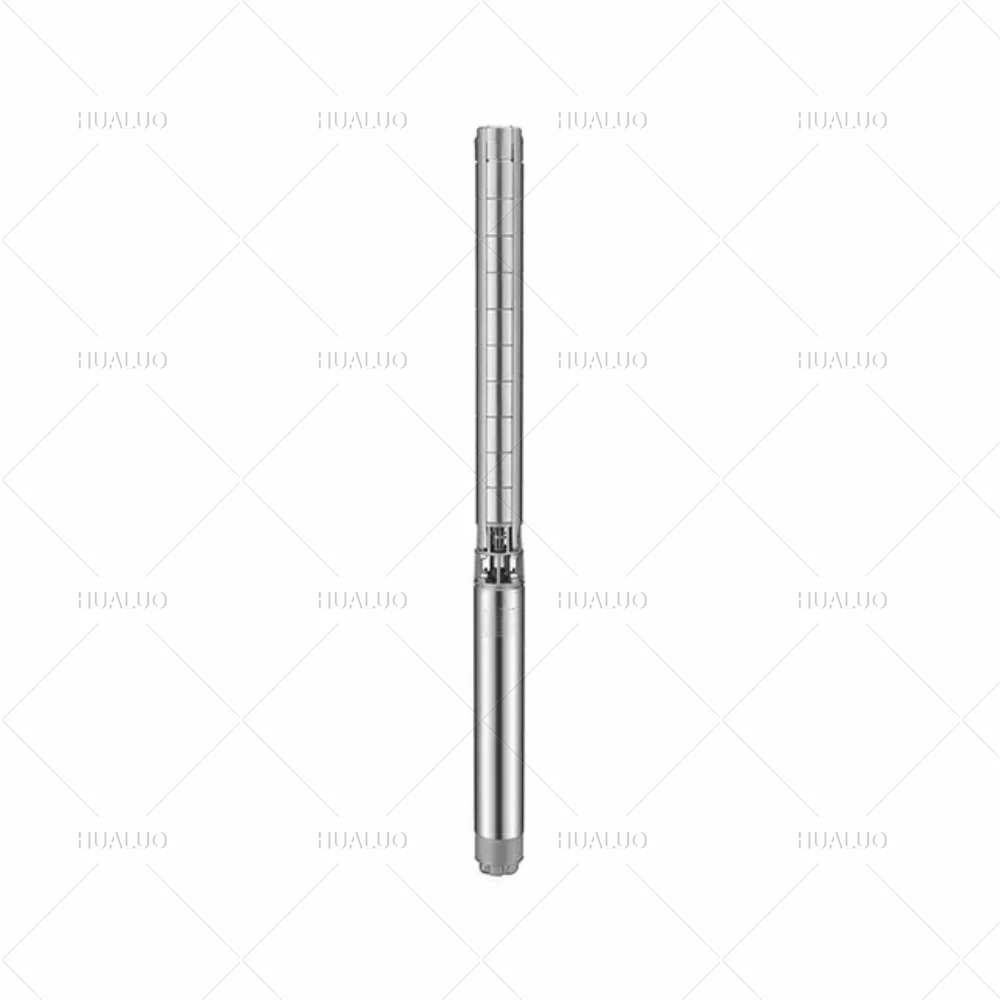

4SP14 (100QJ14)18.01680.13 – 0.30 kW14 m³/h

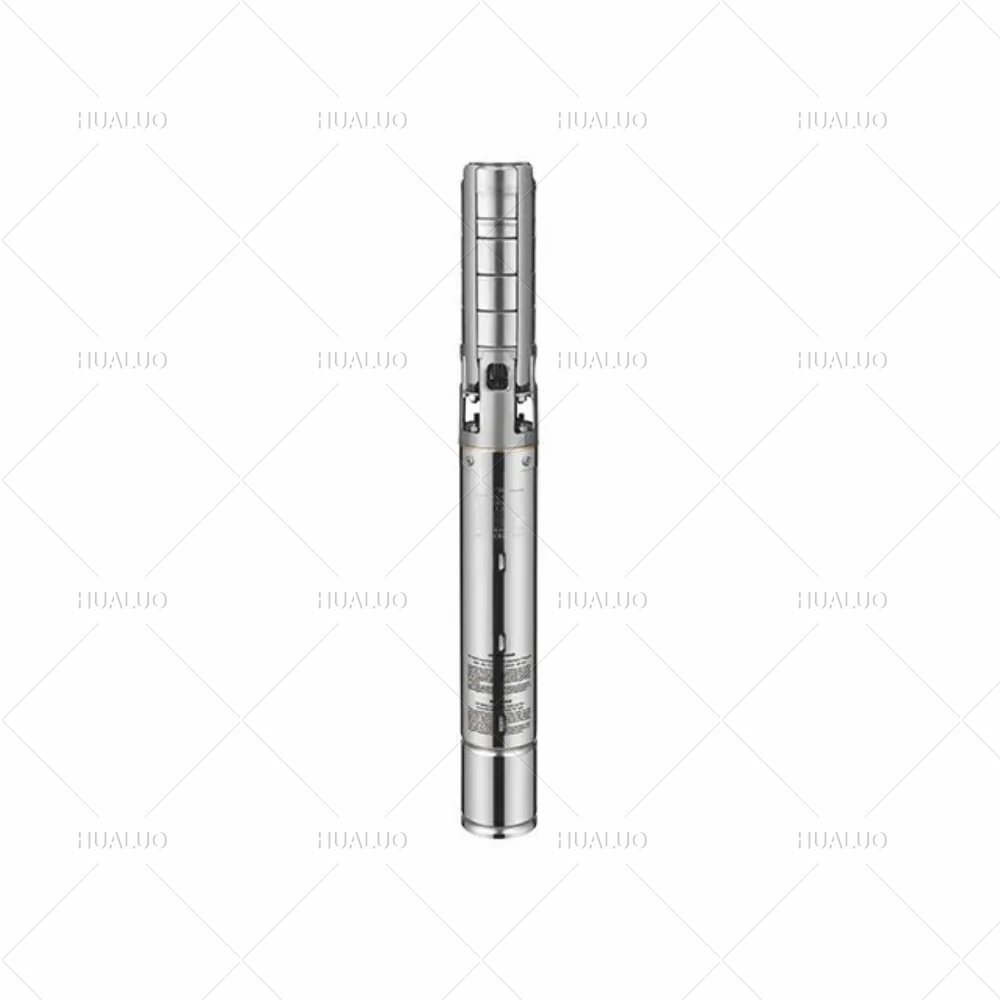

4SP8 (100QJ8)12.02720.05 – 0.15 kW8 m³/h

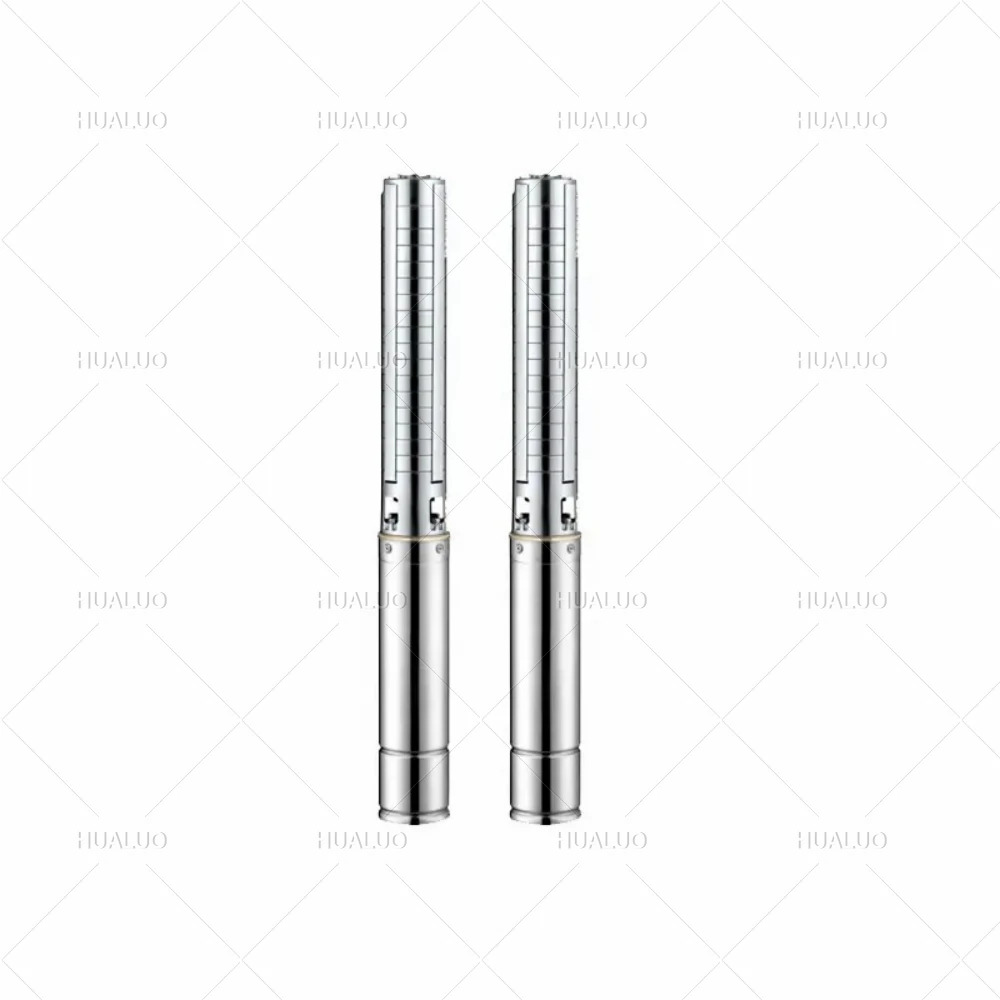

4SP5 (100QJ5)6.63180.035 – 0.095 kW5 m³/h

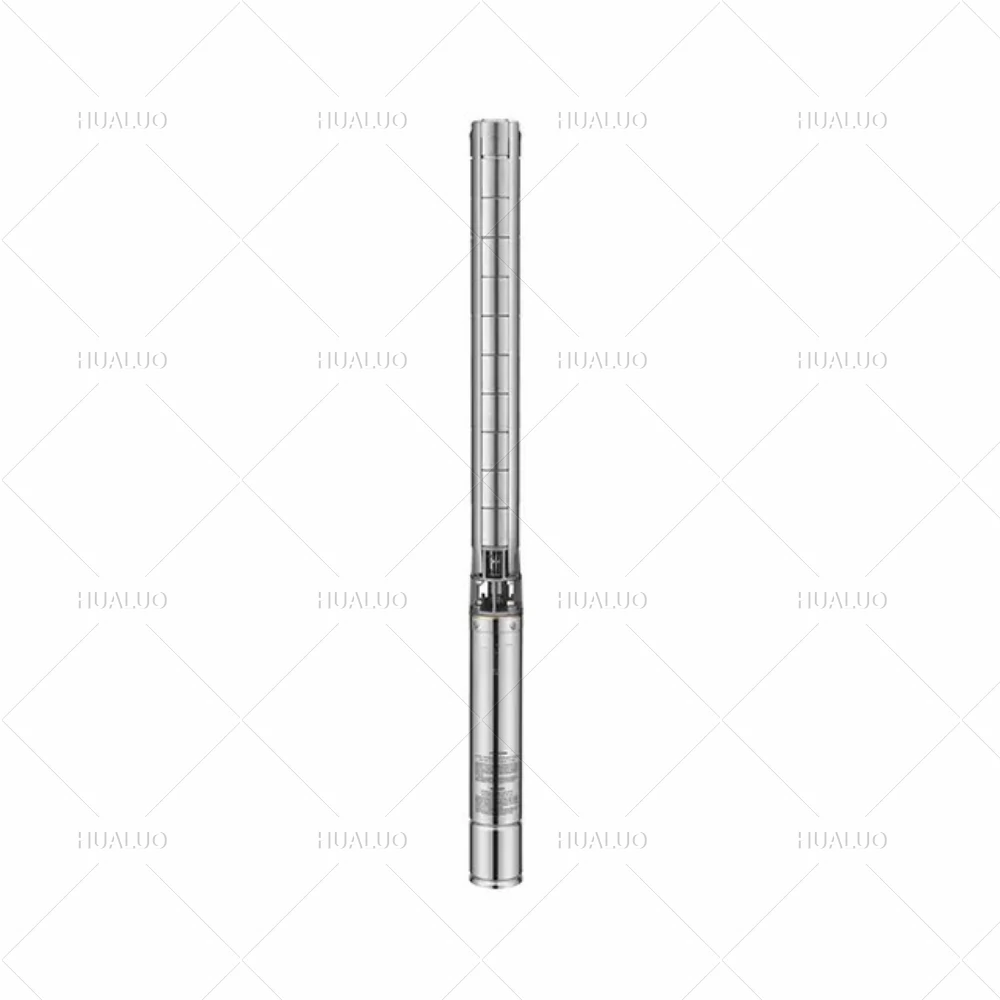

4SP3 (100QJ3)4.83280.03 – 0.065 kW3 m³/h
The 4SP series has a steep performance curve: small changes in flow cause significant pressure changes. The 4SP3 and 4SP5 are suitable for high-pressure applications such as multi-story residential supply and fountain nozzles. The 4SP14 has a flatter curve, delivering higher flow (up to 18 m³/h) for rapid tank filling.

Core Specs

Flow Range: 0.3 – 18 m³/h
Head Range: Up to 328 m
Power Range: 0.03 kW – 0.30 kW

Why Partners Trust HUALUO 4 inch submersible pumps?

High-frequency start-stop capable – Meets industrial fountain and deep-well standards. Handles frequent cycles without reducing motor or hydraulic life.
100% stainless steel – Maximum resistance to corrosion and abrasion.
Global use – Deployed in 30+ countries and regions. Quality assured.

Primary Applications

Commercial and musical fountains
Agricultural irrigation
Deep well groundwater extraction
Solar pumping systems

4 inch fountain pumps quick selection
