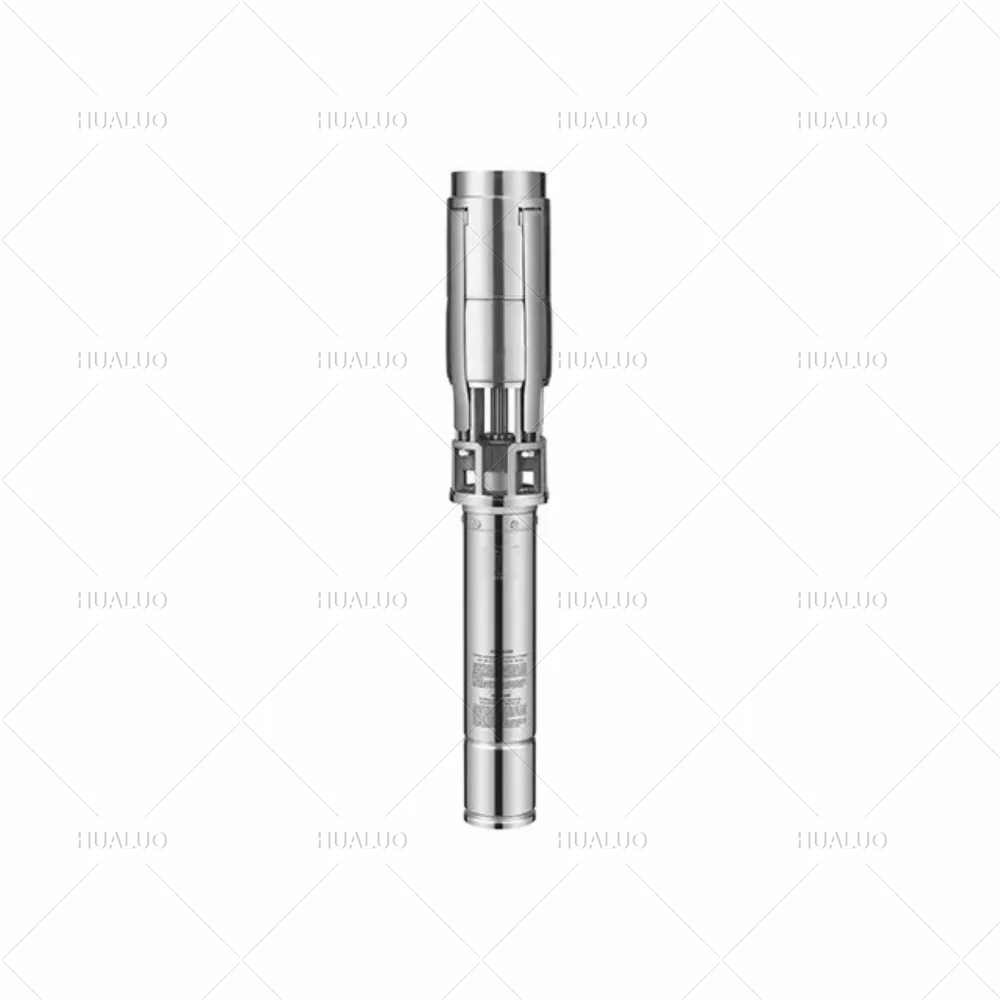

10 inch stainless steel fountain pumps

HUALUO 10″ stainless steel fountain pumps – high-volume water transfer for industrial, municipal, and large-scale projects. High flow capacity, structural stability under heavy load.

Model-by-Model Breakdown

ModelMax Flow (m³/h)Max Head (m)Power/Stage (P2​)Best Efficiency Point (BEP)
10SP160 (250QJ160)190.044810.0 – 19.5 kW160 m³/h
10SP125 (100QJ125)160.04158.0 – 16.5 kW125 m³/h
The 10SP160 requires approximately 20 kW of shaft power per stage at peak flow. The 10SP125 is suitable for deeper wells where less volume is needed but higher lift pressure is required.
Quick Selection
Catalog Download

Core Specs

Max Flow: Up to 190 m³/h
Max Head: Up to 448 m
Power Range: 8.0 kW – 19.5 kW (10.7 HP – 26.1 HP)
Discharge: DN150 / DN200

Why Choose HUALUO 10 inch submersible pumps

Global use – 30+ countries, 24/7 operation. City waterworks, fountains.
Heavy-duty design – Reinforced hydraulics handle high stress. Deep or harsh conditions.
Specialized manufacturing – Efficient, safe design from dedicated facility.

Primary Applications

Municipal waterworks – Primary intake for city water treatment and distribution.
Mine dewatering – High-volume drainage for industrial evacuation.
Large-scale water features – High-flow supply for musical fountains.
Industrial process intake – High-capacity water supply for power plants and heavy manufacturing.
